Glassware
Reaction Flask Cover / flange / SPC Joint
・ It is a glass -made crisp flask cover that separates the cover part and the flask part.
・ There are a wide range of applications such as chemical reactions and biological reactions.
・ The SPC standard connection part can be used for installation of various sensors, adding samples, introducing gas and exhaust.
・ Use in combination with a crisp flask by a screw -in or spring type clamp.
・ There are a wide range of applications such as chemical reactions and biological reactions.
・ The SPC standard connection part can be used for installation of various sensors, adding samples, introducing gas and exhaust.
・ Use in combination with a crisp flask by a screw -in or spring type clamp.

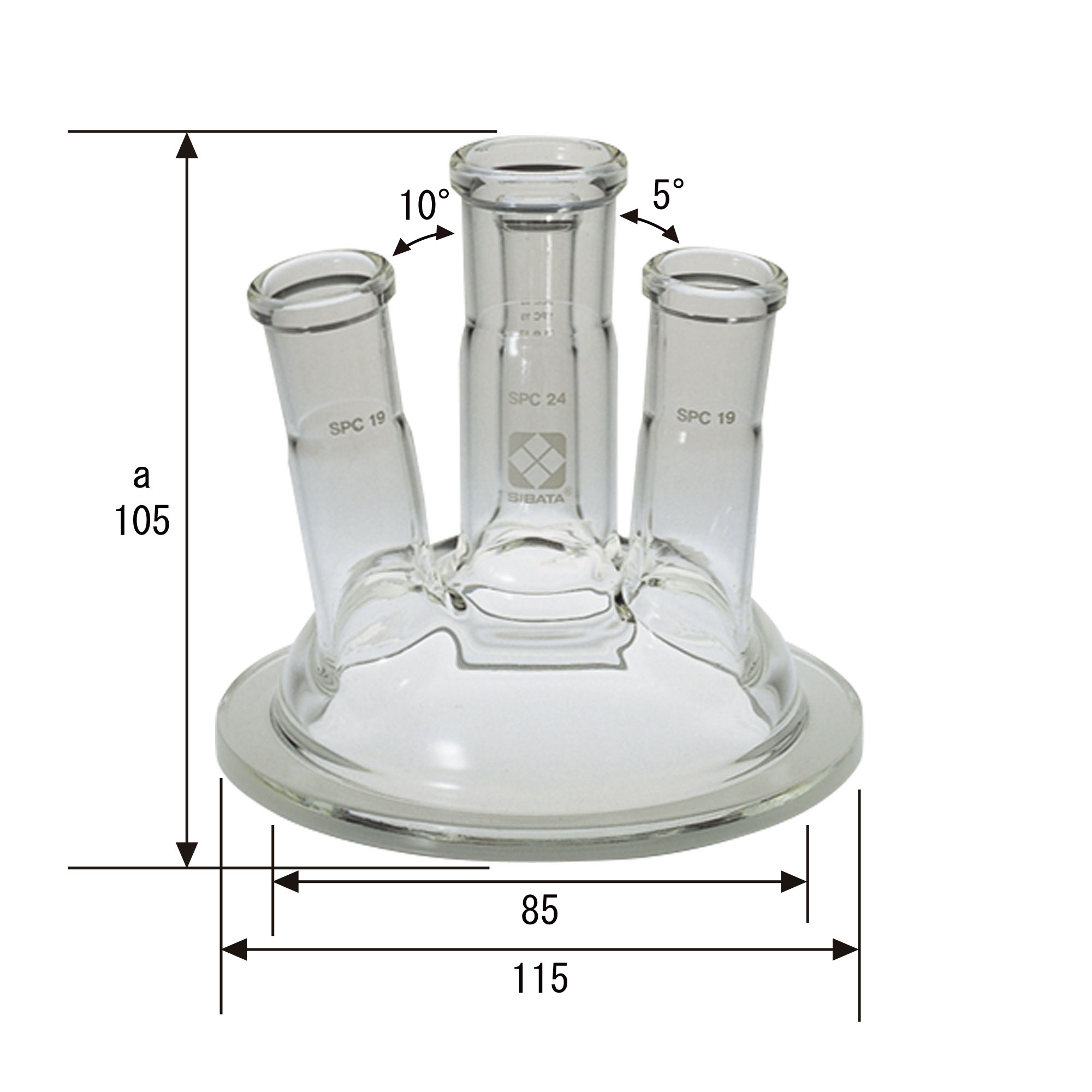

Information by Item Code (Specifications)
| Item Code | 032300-04 | |
|---|---|---|
| Inner diameter of flange | 85 | |
| Outer diamater of flange | 115 | |
| Center neck | SPC-24 | |
| Side tube | SPC-19 × 1 SPC-19 × 2 |
|
| Angle of Side tube | 5 ° 10 ° |
|
| Length a | 105 | |
| Number of mouths | 4 mouths | |
| Price (excluding tax) | Contact us | |
| Note | ||
